58mm Diameter Brushles DC Motor With 90 Degree Shaft Worm Gearbox

This 58mm right-angle worm gear motor is built for compact 90° layouts that need strong reduction, stable holding behavior, and a rigid gearbox body that keeps output direction fixed in the mechanism.

Get a Quote

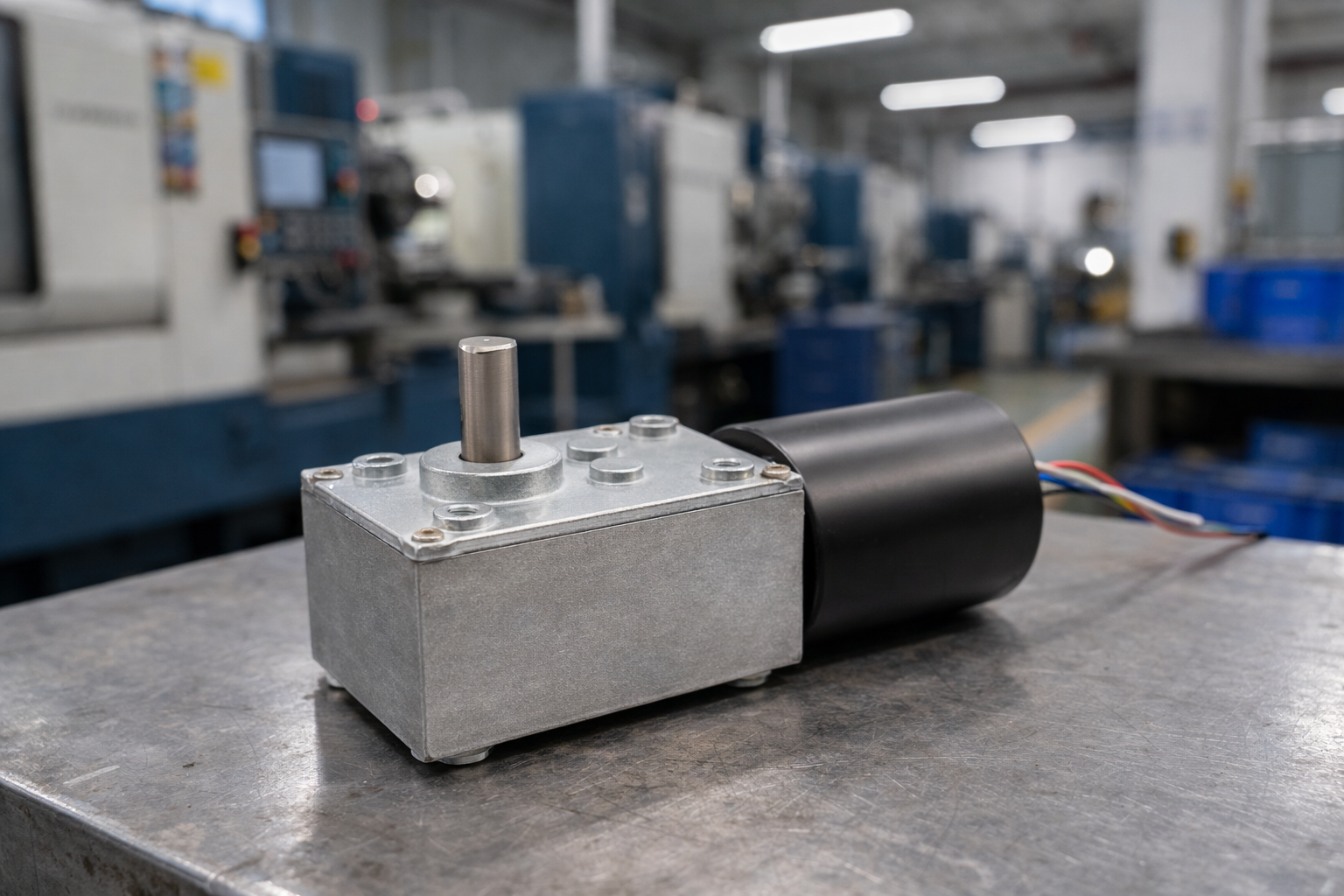

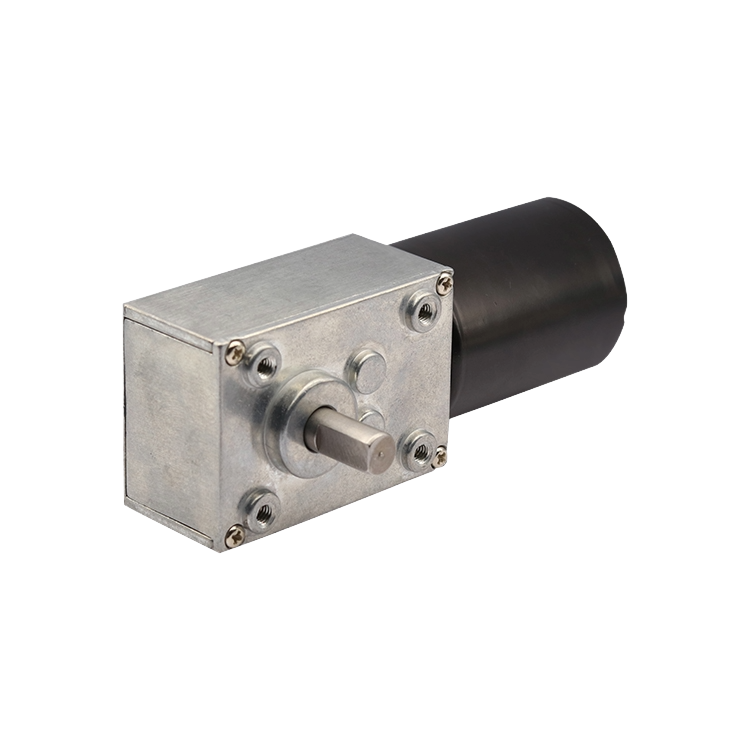

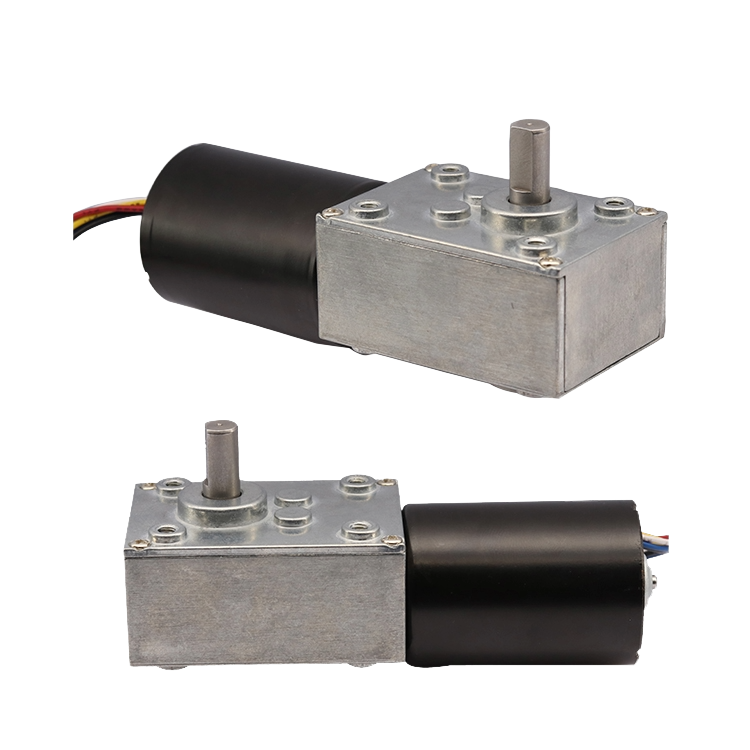

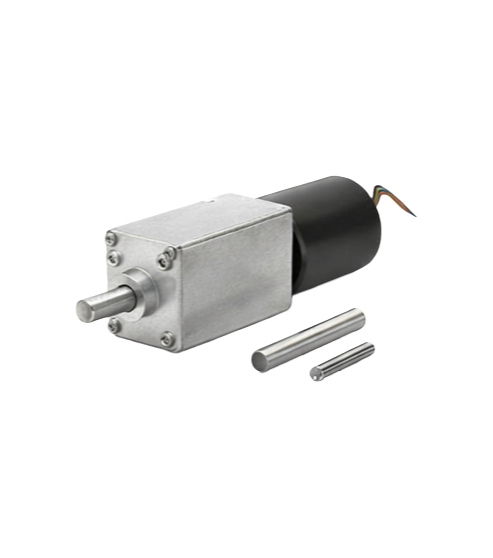

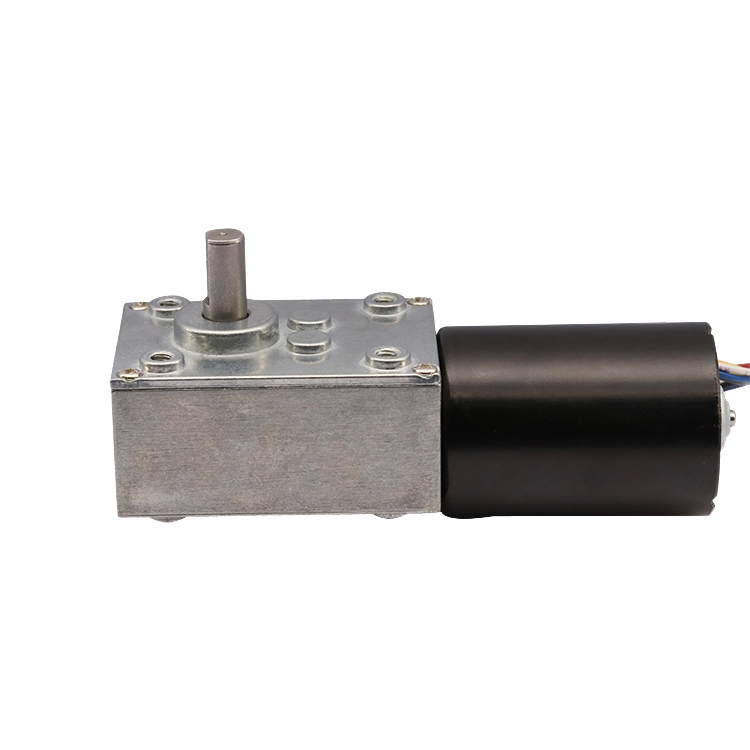

  • 58mm Diameter Brushles DC Motor With 90 Degree Shaft Worm Gearbox Featured Image
Specs

Key Features

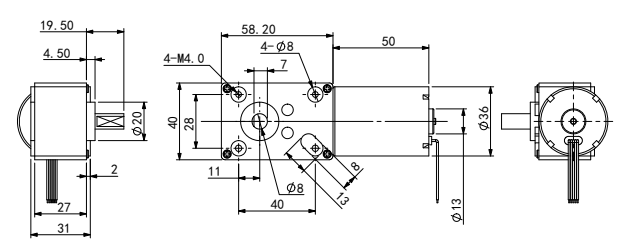

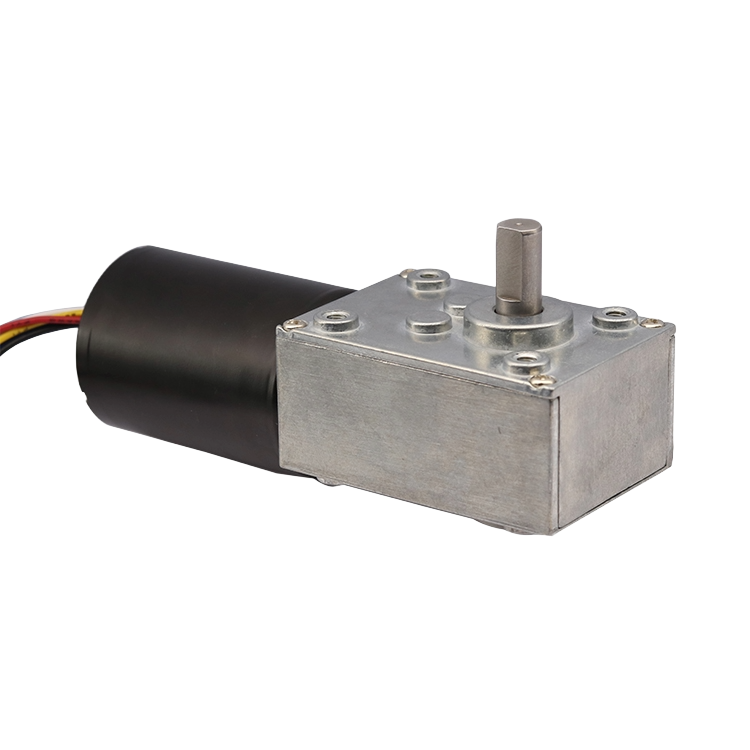

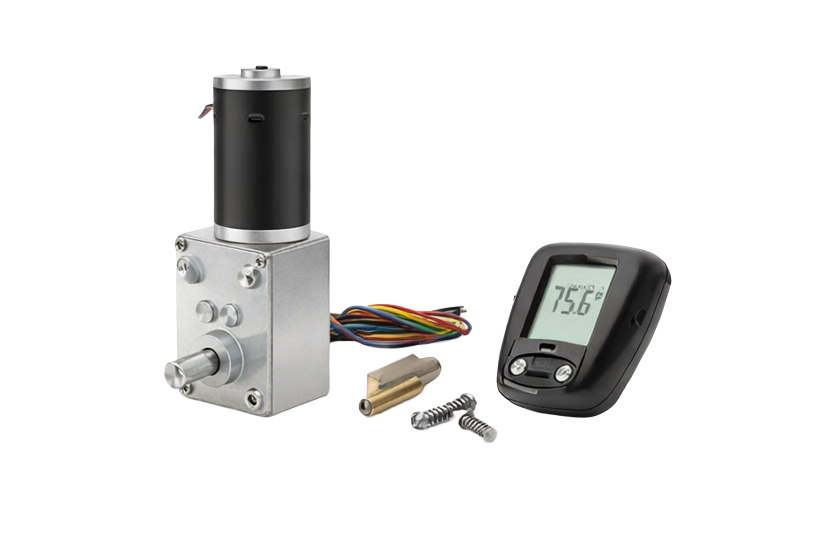

This model combines a brushless DC motor (Φ36×L50) with a 58mm right-angle worm gearbox (L58.2×40×27), targeting applications where a straight-line planetary gearbox is hard to package.

  • 90-degree output direction helps you route drive power around corners without extra belts or transfer gears
  • Worm reduction behavior prioritizes holding and resistance to back-driving compared with planetary gearboxes
  • Rigid gearbox block structure supports stable mounting when the output load sits off-axis
  • High reduction ladder allows low-speed output without stacking multiple external stages
  • Applied range 6V–48V supports wide system architectures while keeping a consistent mechanical interface
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (V) Speed (RPM ±10%) Current (A) Speed (RPM ±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
15.5 12 516 0.55 432 3.5 2.5 25.6 9 12.2
25 12 320 0.55 280 3.5 5 25.6 14 12.2
31 12 258 0.55 210 3.5 10 25.6 16.5 12.2
50 12 160 0.55 125 3.5 15 25.6 28 12.2
62 12 129 0.55 105 3.5 20 25.6 33 12.2
73.5 12 108 0.55 98 3.5 20 25.6 40 12.2
96 12 83 0.55 73 3.5 25 25.6 55 12.2
100 12 80 0.55 72 3.5 25 25.6 55 12.2
120 12 66 0.55 55 3.5 30 25.6 65 12.2
147 12 54 0.55 44 3.5 30 25.6 68 12.2
156 12 51 0.55 42 3.5 35 25.6 70 12.2
193 12 41 0.55 32 3.5 35 25.6 80 12.2
239 12 33 0.55 28 3.5 40 25.6 90 12.2
313 12 26 0.55 21 3.5 50 25.6 100 12.2
328 12 24 0.55 20 3.5 50 25.6 110 12.2
448 12 17 0.55 14 3.5 60 25.6 200 12.2
657 12 12 0.55 9 3.5 80 25.6 400 12.2
896 12 9 0.55 7 3.5 80 25.6 400 12.2

For additional customization or reference configurations, please feel free to contact us.
