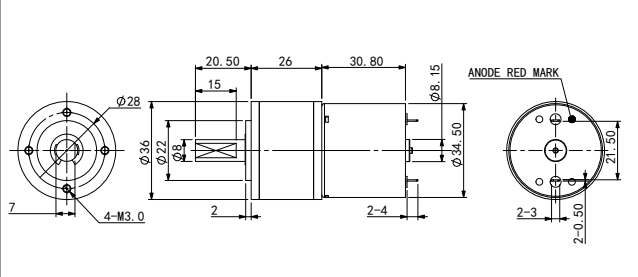

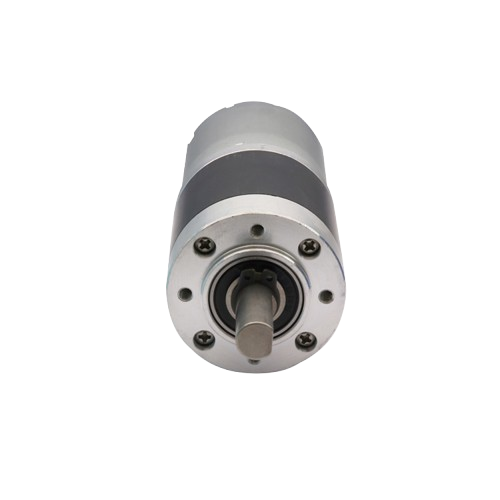

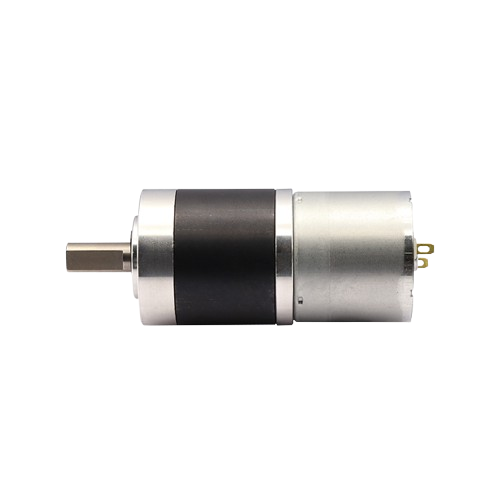

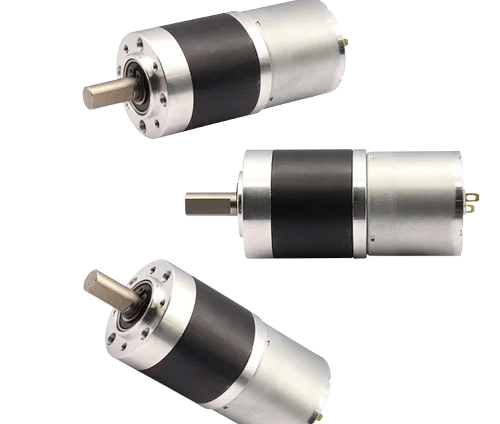

This 36mm diameter brushed motor with planetary gearbox combines a compact motor length with a robust gearbox platform, making it suitable for applications requiring controlled size and reliable output.
Using the same 36mm planetary platform, this version prioritizes reduced motor length while maintaining mechanical strength.
| Reduction Ratio | Reducer L value | No load | At Max.Efficiency | Stall | |||||
| Current | RPM | RPM | Torque | Current | Power | Torque | Current | ||
| Ratio | mm | A | r/min | r/min | kg.cm | A | W | kg.cm | A |
| 5.2 | 26.5 | 0.1 | 1154 | 960 | 0.5 | 0.6 | 10 | 4 | 3 |
| 14 | 32.5 | 0.1 | 429 | 350 | 1 | 0.6 | 10 | 6 | 3 |
| 27 | 0.1 | 222 | 180 | 2.5 | 0.6 | 10 | 10 | 3 | |
| 50 | 38.5 | 0.1 | 120 | 96 | 5 | 0.6 | 10 | 18 | 3 |
| 82 | 0.1 | 73 | 58 | 3 | 0.6 | 10 | 32 | 3 | |
| 139 | 0.1 | 43 | 35 | 15 | 0.6 | 10 | 48 | 3 | |
| 218 | 44.5 | 0.1 | 28 | 22 | 22 | 0.6 | 10 | 60 | 3 |
| 369 | 0.1 | 16 | 12 | 35 | 0.6 | 10 | 70 | 3 | |
| 516 | 0.1 | 12 | 10 | 42 | 0.6 | 10 | 90 | 3 | |
| 721 | 0.1 | 8 | 6.5 | 50 | 0.6 | 10 | 120 | 3 | |
For additional customization or reference configurations, please feel free to contact us.
Shorter motor body supports layouts with limited axial space.
Allows substitution without changing mounting structure.
Ensures consistent alignment and performance.
Balances size and strength within the same platform.
Our team can help select the appropriate motor length for your design.
