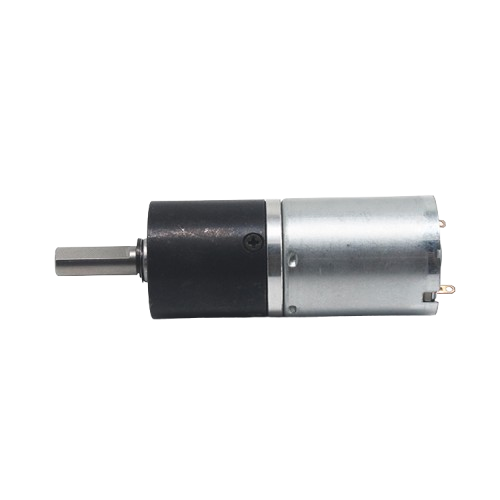

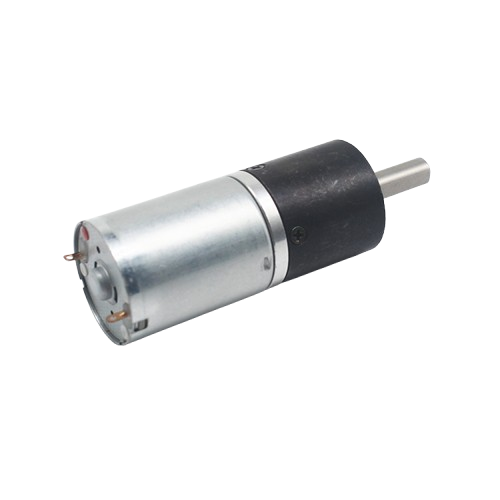

24mm Diameter Brushed Motor With Planetary Gearbox

This 24mm diameter 370 micro brushed motor with planetary gearbox offers increased gearbox diameter and motor capacity, making it suitable for applications that require higher structural strength and load handling.

Get a Quote

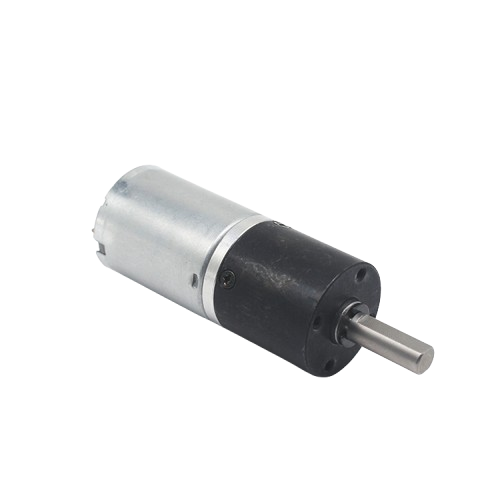

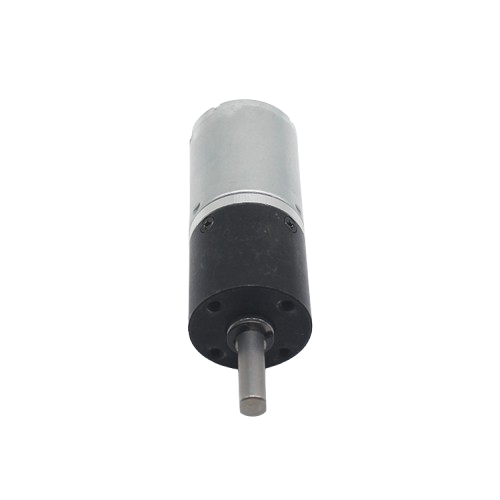

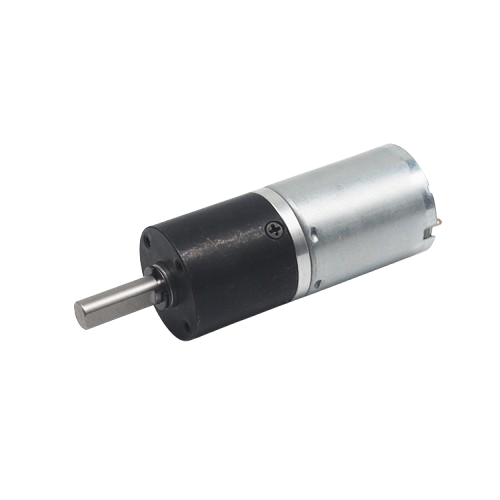

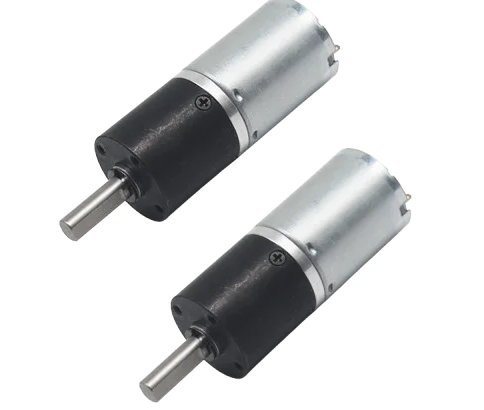

  • 24mm Diameter Brushed Motor With Planetary Gearbox Featured Image
Specs

Key Features

By combining a 370 motor with a 24mm planetary gearbox, this model supports applications that require enhanced mechanical robustness.

  • 24mm diameter planetary gearbox for increased structural strength
  • 370 motor configuration with longer motor body
  • Planetary gear structure for improved load distribution
  • Integrated motor and gearbox assembly for stable alignment
  • Suitable for applications requiring higher torque capacity
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall Gearbox Length (MM)
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
4 1500 0.08 1320 0.9 0.4 8.2 1.2 1.95 1.95
5 12 1200 0.08 1050 0.9 0.5 8.2 1.5 1.95 19.5
16 12 375 0.08 315 0.9 1.5 8.2 48 1.95
20 12 300 0.08 255 0.9 2 8.2 6 1.95
25 12 240 0.08 195 0.9 2.5 8.2 7.5 1.95 25.3
27.5 12 218 0.08 185 0.9 3 8.2 8 1.95
64 12 93 0.08 80 0.9 7 8.2 18 1.95
80 12 75 0.08 65 0.9 8 8.2 25 1.95
100 12 60 0.08 50 0.9 10 8.2 30 1.95 31
125 12 48 0.08 40 0.9 12 8.2 35 1.95
138 12 43 0.08 35 0.9 15 8.2 40 1.95
256 12 23 0.08 19 0.9 20 8.2 60 1.95
320 12 18 0.08 14 0.9 25 8.2 70 1.95
400 12 15 0.08 12 0.9 30 8.2 80 1.95 36.7
500 12 12 0.08 10 0.9 30 8.2 80 1.95
625 12 9.5 0.08 8 0.9 50 0.2 80 1.8

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Upgraded Planetary Platform

    The 24mm gearbox provides higher mechanical strength compared to smaller platforms.

  • Extended Motor Configuration

    The 370 motor supports applications with increased load requirements.

  • Controlled Assembly Quality

    Ensures dimensional consistency across production batches.

  • Project-Oriented Design

    Well suited for applications requiring durable and stable output.

Custom

Beyond the Standard: Performance Customized

  • 01

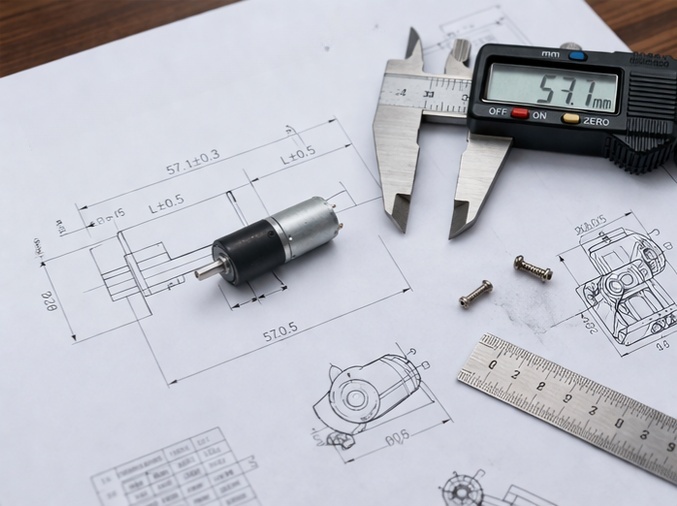

    Gearbox Platform Selection
    24mm planetary gearbox chosen for higher load applications.
  • 02
    Motor Capacity Matching
    370 motor configuration aligned with higher torque needs.
  • 03

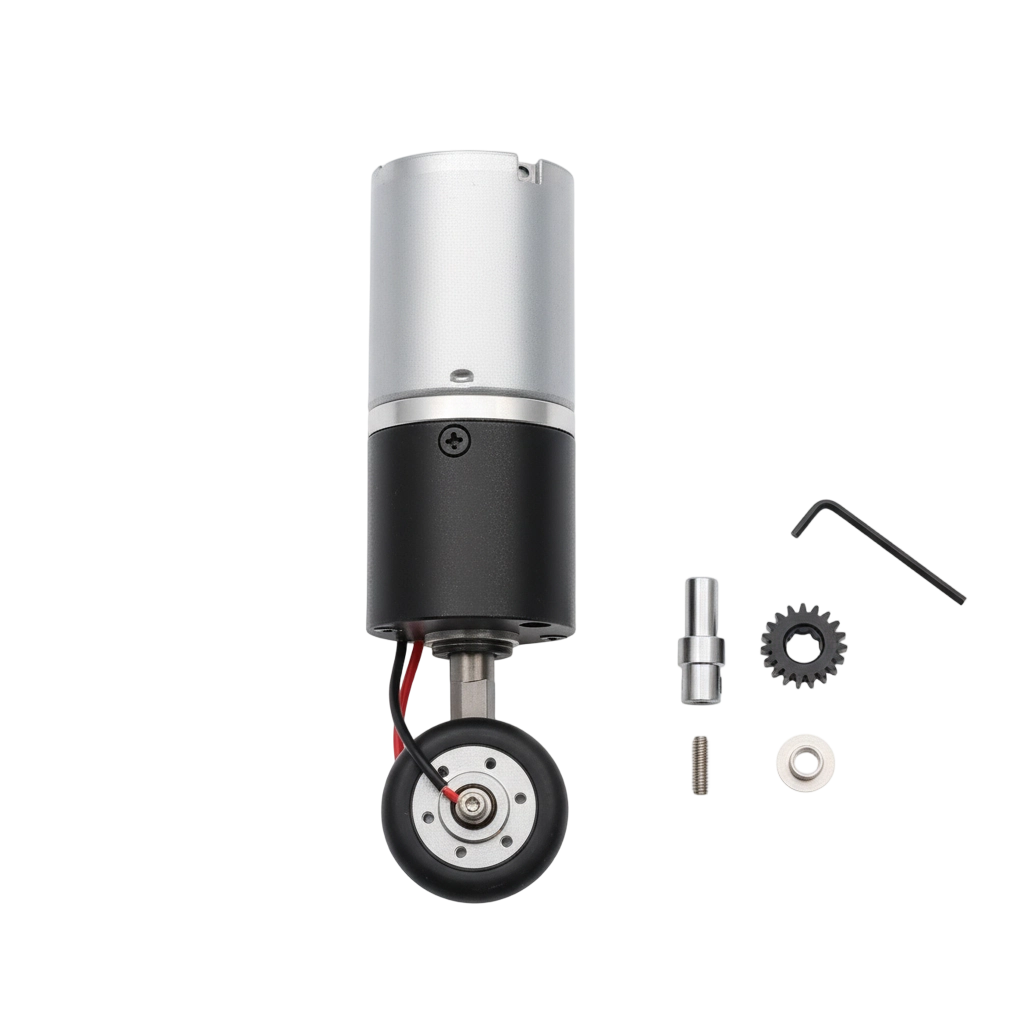

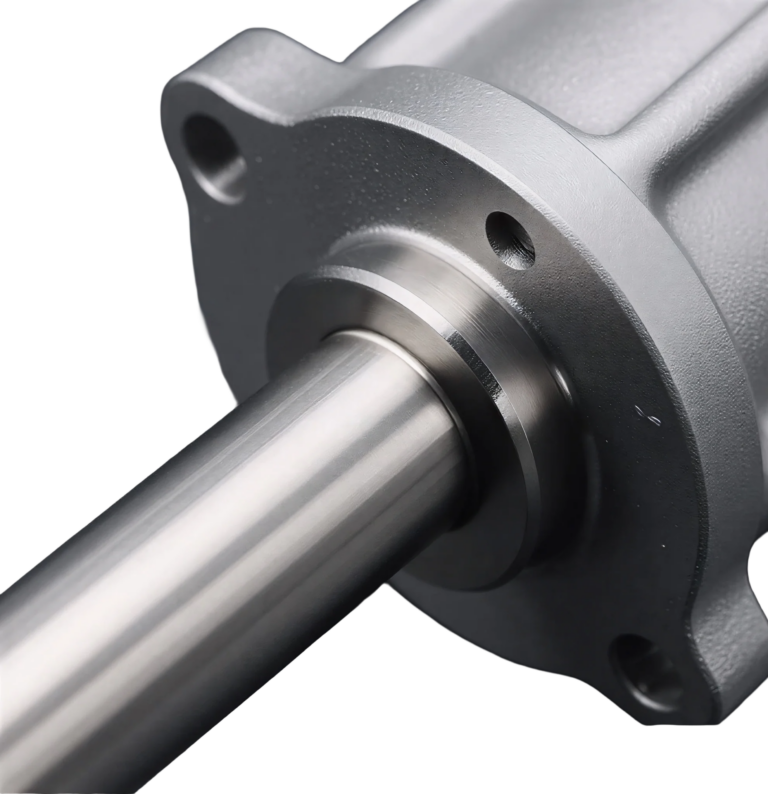

    Output Shaft Configuration
    Shaft dimensions can be reviewed based on transmission requirements.
  • 04

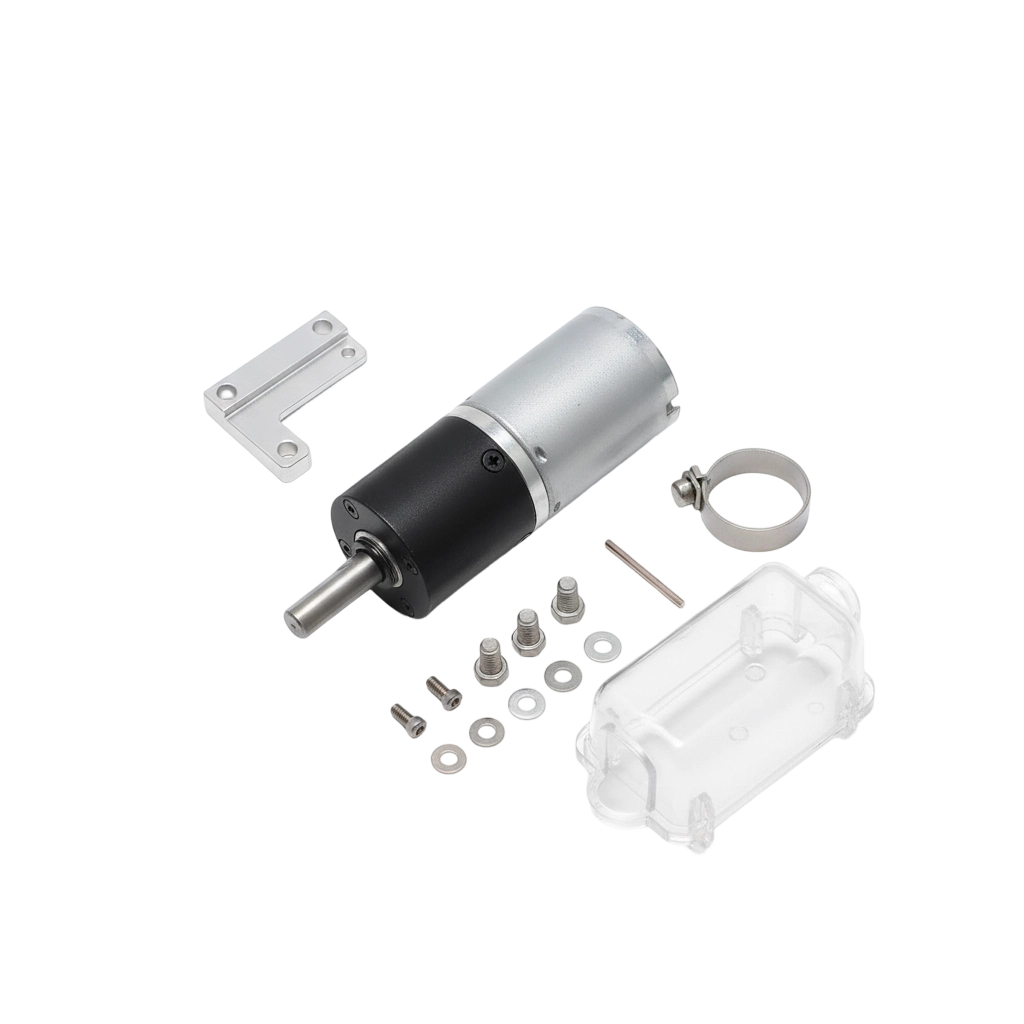

    Mounting Interface Review
    Mounting details adapted to mechanical layout constraints.
  • 05

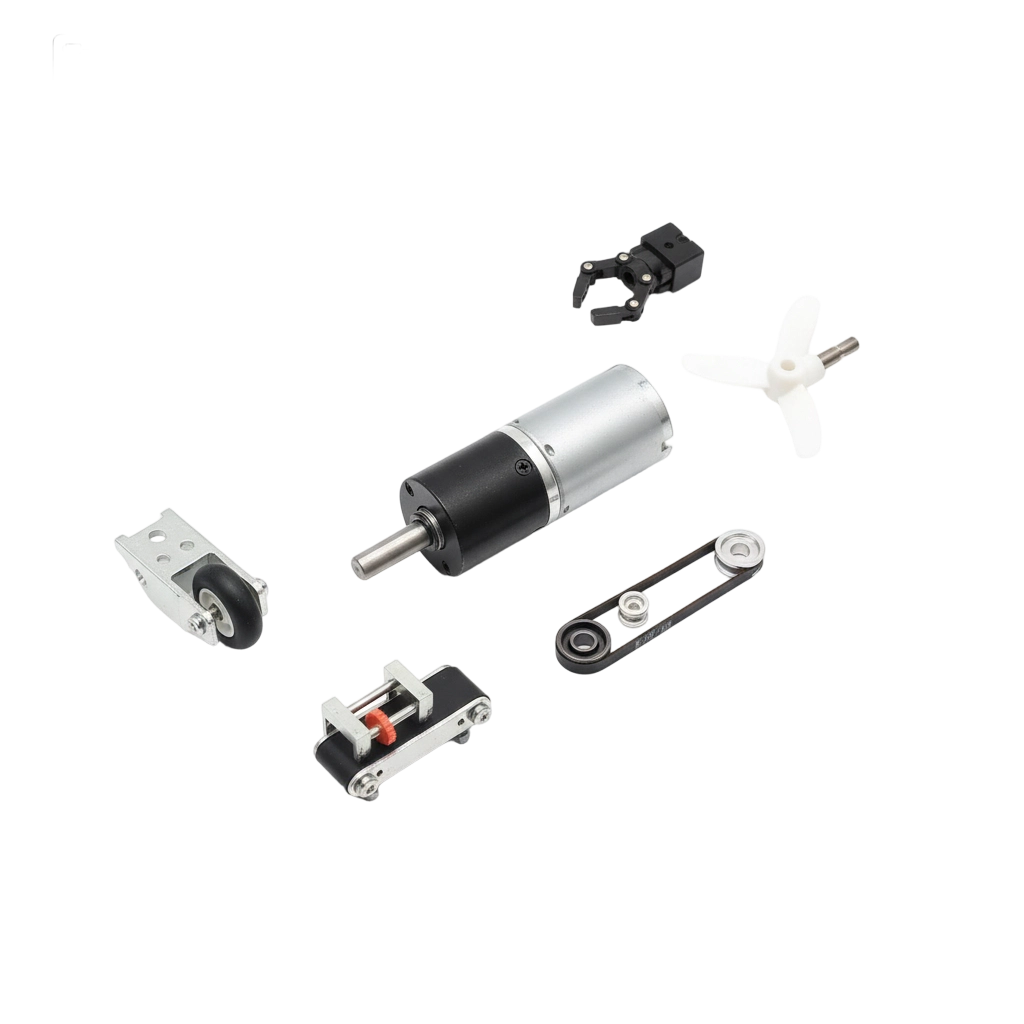

    Application-Oriented Requests
    Customization evaluated according to project conditions and usage.
  • Gearbox Platform Selection
  • Motor Capacity Matching
  • Output Shaft Configuration
  • Mounting Interface Review
  • Application-Oriented Requests

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

Our team can help evaluate whether the 24mm platform fits your application requirements.

How does this model differ from the 20mm planetary gearbox motor?
It features a larger gearbox diameter and a longer motor body, supporting higher load capacity.
Is this motor suitable for heavier applications?
Yes. It is designed for applications requiring greater structural strength.
Is this model suitable for long-term projects?
Yes. It supports stable production and ongoing supply.
