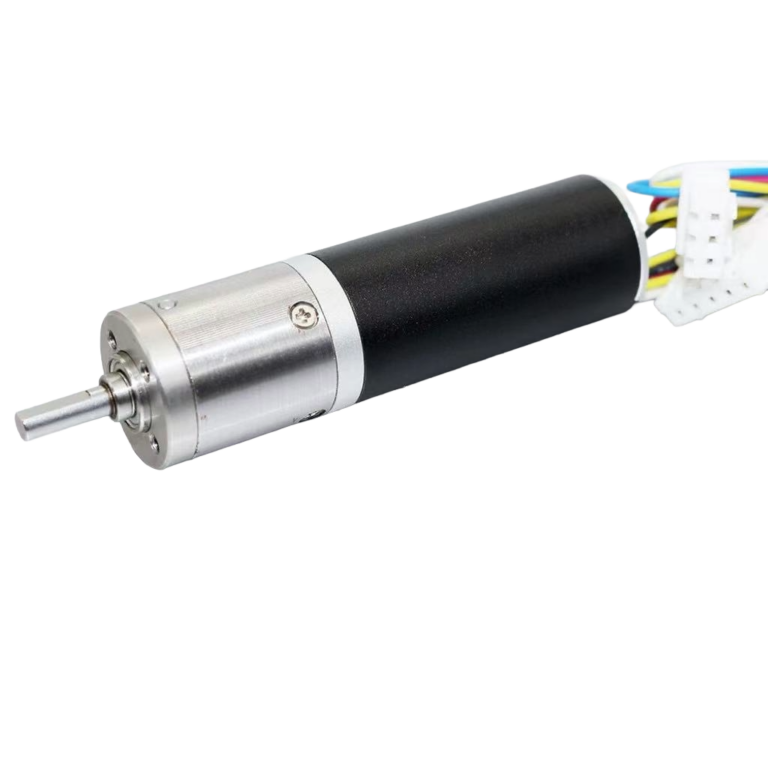

22mm Diameter Brushless Coreless Motor With Planetary Gearbox

This 22mm brushless coreless motor with a planetary gearbox is built for compact drives that need stable speed control, predictable torque output, and simple integration across different output speed options.

Get a Quote
  • 22mm Diameter Brushless Coreless Motor With Planetary Gearbox Featured Image
Specs

Key Features

This model combines a 22mm brushless coreless motor and a planetary gearbox for compact mechanisms where stable output and clean integration matter.

  • Brushless coreless design supports smooth response and steady running in compact motion systems
  • Planetary gearbox helps maintain output consistency as load changes
  • Multiple winding and output options support different speed targets without redesigning the mechanical layout
  • Works well in low-speed drive and controlled-motion mechanisms that require repeatable output behavior
  • 6V–48V applied range supports flexible power architectures across product variants
technical Specs

Motors Specifications

Motor Model Rated voltage No-load speed No-load current Rated speed Rated torque Rated current Stall torque
　 VDC r/min mA r/min kg.cm A kg.cm
BLC-2248-01 24 2400 10 2004 0.6 0.8 1
BLC-2248-02 24 640 125 534 2 0.82 4
BLC-2248-03 24 171 140 143 6.8 0.83 12
BLC-2248-04 24 32 155 30 1.2 0.41 22

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Stable Output for Controlled Motion

    A planetary gearbox helps keep output behavior more consistent when your load changes during motion.

  • Brushless Coreless Response

    A low-inertia rotor supports smoother acceleration and deceleration, especially in frequent start-stop profiles.

  • Wide Speed Options Without Layout Redesign

    Use the same mechanical platform while selecting different output speeds based on your control target and load margin.

  • Integration-Friendly Power Architecture

    The applied voltage range supports different system power designs without forcing a new motor envelope.

Custom

Beyond the Standard: Performance Customized

  • 01
    Wiring & Lead Arrangement
    Lead length, exit direction, and connector style can be adapted to match enclosure routing.
  • 02
    Output Shaft Interface
    Shaft length and end style can be reviewed to match couplers, gears, or driven components.
  • 03
    Mounting & Housing Fit
    Mounting alignment and installation clearance can be checked against your mechanism envelope.
  • 04
    Voltage & Winding Options
    Rated voltage can be matched to your control scheme based on available windings.
  • 05
    Application-Based Adaptation
    Customization is evaluated by how the unit fits your layout and duty profile, not by repeating fixed dimensions.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Mounting & Housing Fit
  • Voltage & Winding Options
  • Application-Based Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

If you share your available space and the driven load type, we can help narrow the most suitable configuration quickly.

What makes this motor suitable for compact mechanisms?
It combines a 22mm brushless coreless motor with a planetary gearbox, keeping the drive compact while maintaining stable output behavior.
How do I choose between the different motor models in the table?
Match your target output speed first, then confirm the torque margin and current level that your controller and thermal limits can support.
When should I prioritize higher torque options over higher speed options?
Choose higher torque when your mechanism sees higher friction, heavier loads, or more frequent acceleration events.
Can I request a specific lead wire routing?
Yes. Lead length and exit direction can be adapted to match your internal wiring path.
Can I request a different lead wire routing or connector style?
Yes. Wiring length and exit direction can be adapted to match your layout.
Is this model suitable for repeat production?
Yes. It is designed for stable supply in standard configurations.
