12mm Brushed DC Motor With 90 Degree Shaft Worm Gearbox

The 12mm micro bushed motor with 90-degree shaft worm gearbox is designed for space-constrained layouts, enabling right-angle power transmission in compact electromechanical assemblies.

Get a Quote

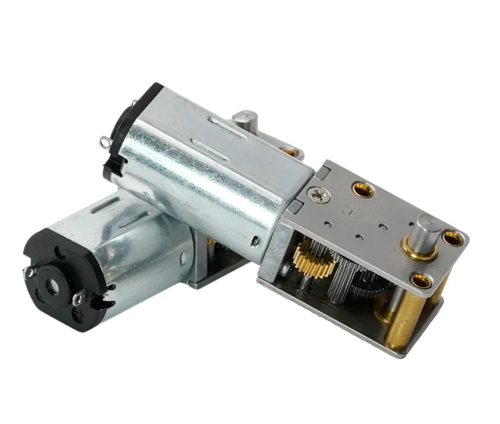

  • 12mm Brushed DC Motor With 90 Degree Shaft Worm Gearbox Featured Image
Specs

Key Features

This model is centered on layout flexibility and directional output control. The 90-degree worm gearbox allows designers to route motion efficiently where inline configurations are impractical.

  • 90-degree output structure supports flexible mechanical layout
  • Worm gearbox enables stable reduction in miniature assemblies
  • Ultra-compact gearbox footprint for space-limited installations
  • Integrated micro motor and gearbox for simplified alignment
  • Designed for applications operating within a 6V–24V voltage range
technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
18 12 1055 21 9000 65 16 0.80 110 340
42 12 452 21 385 65 38 0.80 257 340
63 12 301 21 257 65 57 0.80 385 340
80 12 237 21 202 65 72 0.80 490 340
102 12 186 21 158 65 92 0.80 624 340
105 12 180 21 154 65 95 0.80 642 340
115 12 165 21 140 65 104 0.80 703 340
121 12 157 21 103 65 109 0.80 740 340
127 12 149 21 108 65 114 0.80 777 340
157 12 121 21 103 65 141 0.80 960 340
244 12 77 21 66 65 220 0.80 1493 340
298 12 63 21 54 65 268 0.80 1823 340
302 12 62 21 53 65 272 0.80 1848 340
311 12 61 21 52 65 280 0.80 1903 340
345 12 55 21 46 65 310 0.80 2111 340
604 12 31 21 26 65 543 0.80 3696 340
898 12 21 21 18 65 808 0.80 5459 340
992 12 19 21 16 65 992 0.80 6071 340
1032 12 18 21 15 65 928 0.80 6315 340
1576 12 12 21 10 65 1418 0.80 9645 340

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Layout-Oriented Micro Design

    This model prioritizes output direction and space routing rather than motor size or load capacity.

  • Right-Angle Integration Advantage

    The 90-degree shaft configuration simplifies mechanical design in confined housings and compact enclosures.

  • Consistent Micro Assembly

    Standardized integration of motor and gearbox supports reliable alignment in small-scale production.

  • Optimized for Compact Systems

    Designed to fit miniature mechanisms where straight-line motor placement is not feasible.

Custom

Beyond the Standard: Performance Customized

  • 01
    Output Direction Requirements
    Right-angle output configuration can be reviewed to match specific layout and routing needs.
  • 02
    Mounting and Reference Surfaces
    Mounting features may be adapted to suit custom brackets or enclosure designs.
  • 03
    Shaft End Configuration
    Output shaft length and end style can be adjusted for couplings or direct-drive components.
  • 04
    Miniature System Integration
    Wiring layout, connector orientation, and installation references can be adapted for system-level integration.
  • 05
    Application-Level Adjustments
    Customization can be discussed based on the overall mechanical layout and space limitations.
  • Output Direction Requirements
  • Mounting and Reference Surfaces
  • Shaft End Configuration
  • Miniature System Integration
  • Application-Level Adjustments

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For detailed selection guidance or project-specific requirements, please contact our team for further support.

Why choose a 90-degree shaft configuration?
It allows power transmission to be routed at a right angle, helping resolve space and layout constraints.
What voltage range does this motor support?
It is designed to operate within a 6V to 24V range.
Is the motor supplied with the gearbox as a unit?
Yes. The motor and worm gearbox are provided as an integrated assembly.
Is this model suitable for very small devices?
It is designed specifically for compact mechanisms and space-limited electromechanical systems.
Can this motor be adapted for custom layouts?
Customization options are available depending on installation geometry and production requirements.
