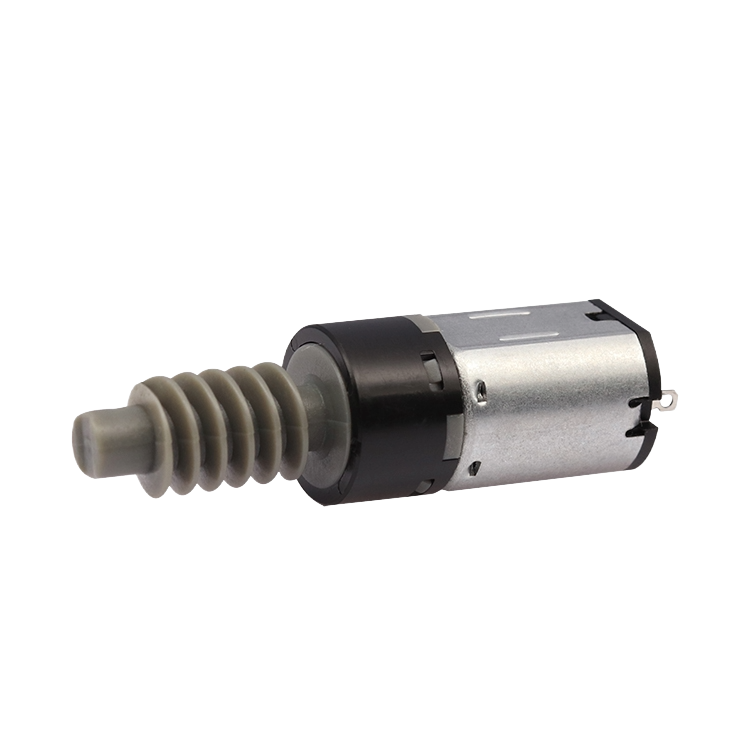

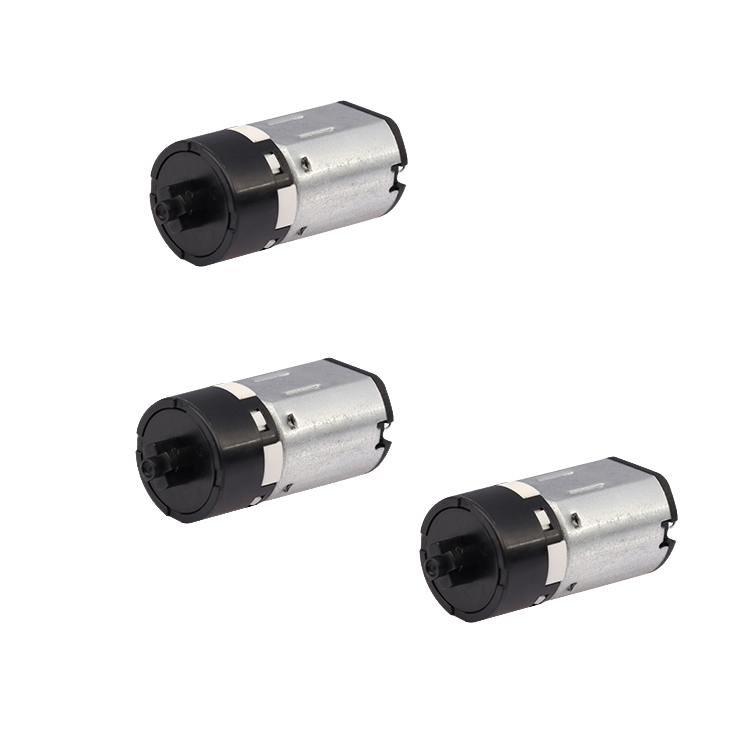

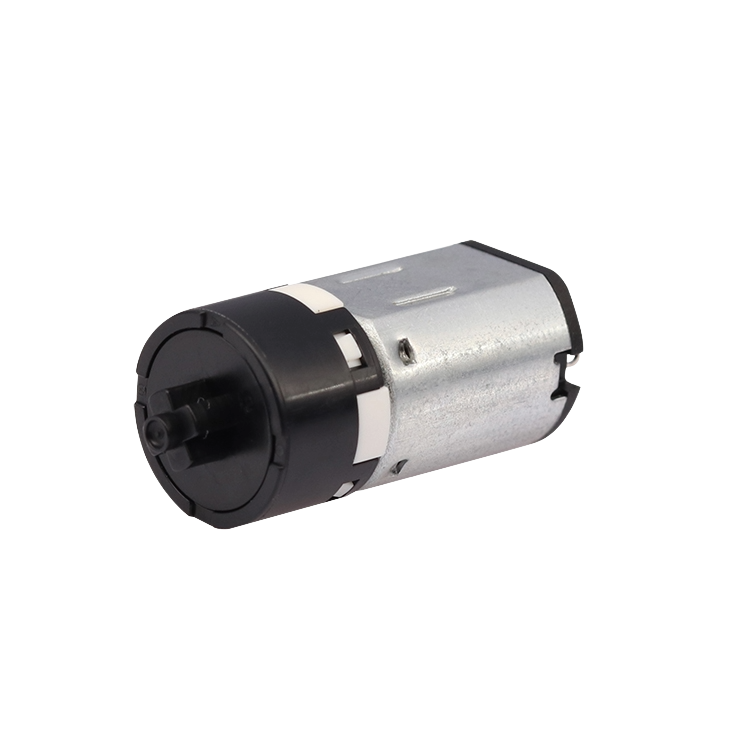

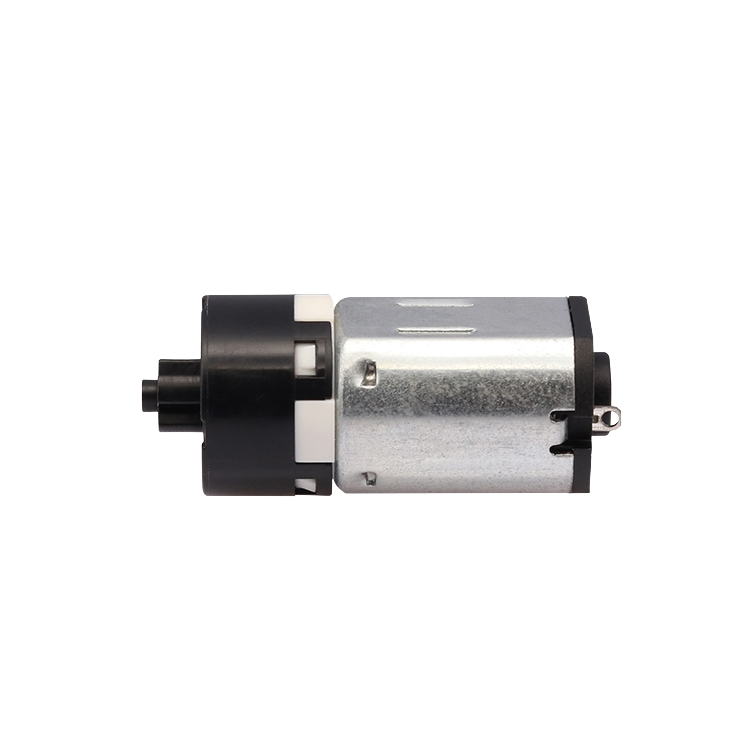

12mm Diameter Micro Brushed Motor With Plastic Gearbox

This 12mm micro brushed motor with a plastic gearbox is designed for compact mechanisms that need a balance of stable output, easy integration, and low-voltage compatibility across a wider operating range.

Get a Quote

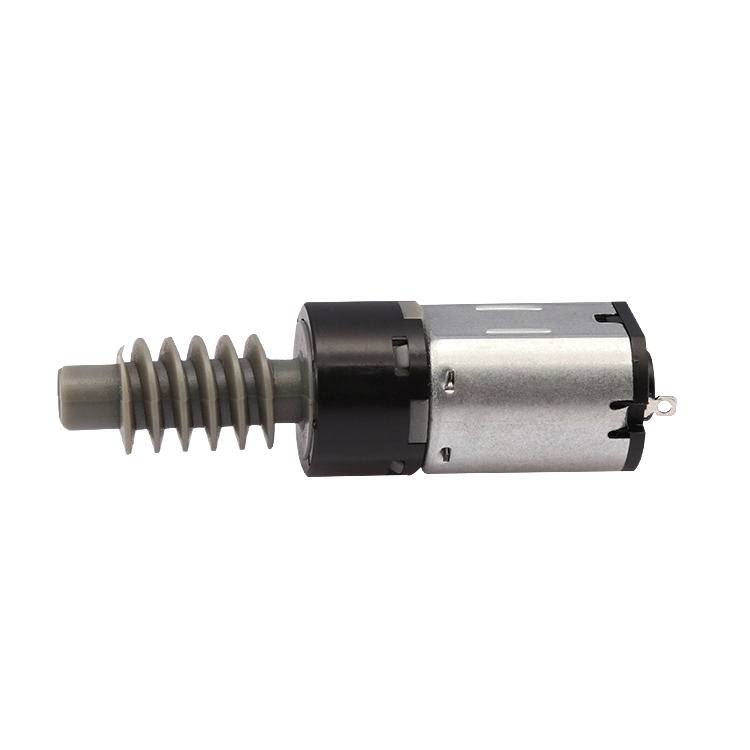

  • 12mm Diameter Micro Brushed Motor With Plastic Gearbox Featured Image
Specs

Key Features

This model pairs a 12mm brushed motor with a compact plastic gearbox to support small mechanisms where packaging size, wiring simplicity, and controllable output matter.

  •  12mm platform offers a practical balance between compact size and installation stability
  •  Plastic gearbox supports lightweight assemblies and space-limited layouts
  •  Integrated unit helps reduce assembly variation during installation
  • Suitable for low-voltage drive systems with multiple rated voltage options
  •   Designed for small mechanisms requiring controlled output and repeatable behavior
technical Specs

Motors Specifications

Motor Model Rated voltage No-load No-load Rated speed Rated torque Rated current Output power Stall torque Stall current
VDC r/min mA r/min g.cm mA W g.cm A
FM1215-002 3.7 20000 50 17200 3.12 250 0.55 18 1.4
FM1215-021 6 12000 18 10000 2.1 70 0.22 10 0.3
FM1215-016 12 20000 16 17000 2.86 70 0.5 16 0.3

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Balanced 12mm Platform

    A practical size for compact mechanisms that need more installation stability than ultra-mini formats.

  • Lightweight Gearbox Integration

    Plastic gearbox design supports compact assemblies where weight and packaging matter.

  • Multiple Rated Voltage Options

    Provides flexibility when matching different power rails and control schemes.

  • Designed for Repeatable Integration

    Integrated assembly helps keep fit and alignment consistent across builds.

Custom

Beyond the Standard: Performance Customized

  • 01
    Wiring & Lead Arrangement
    Lead length, exit direction, and routing can be adapted to match enclosure layout.
  • 02
    Output Shaft Interface
    Shaft length and end style can be reviewed to match couplers or driven parts.
  • 03
    Mounting & Housing Fit
    Mounting and clearance can be checked against your mechanism envelope.
  • 04
    Voltage & Winding Options
    Rated voltage can be matched to your system based on available motor models.
  • 05
    Application-Level Adaptation
    Customization is evaluated by duty profile and integration needs, not by repeating fixed dimensions.
  • Wiring & Lead Arrangement
  • Output Shaft Interface
  • Mounting & Housing Fit
  • Voltage & Winding Options
  • Application-Level Adaptation

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

If you share your target speed, load type, and available space, we can help shortlist the best rated voltage option quickly.

How do I choose between the 3.7V, 6V, and 12V options?
Match the rated voltage to your available supply rail and target operating point, then confirm speed and load needs using the technical data table.
Is this model suitable for compact mechanisms with limited space?
Yes. It is designed to keep installation volume low while offering a more stable platform than smaller motor sizes.
What should I consider when using a plastic gearbox version?
It fits lightweight, compact assemblies and is typically chosen when packaging and weight matter more than heavy shock loading.
Can you adapt wiring or connector style for my assembly?
Yes. Lead length and exit direction can be adjusted to match your internal routing.
