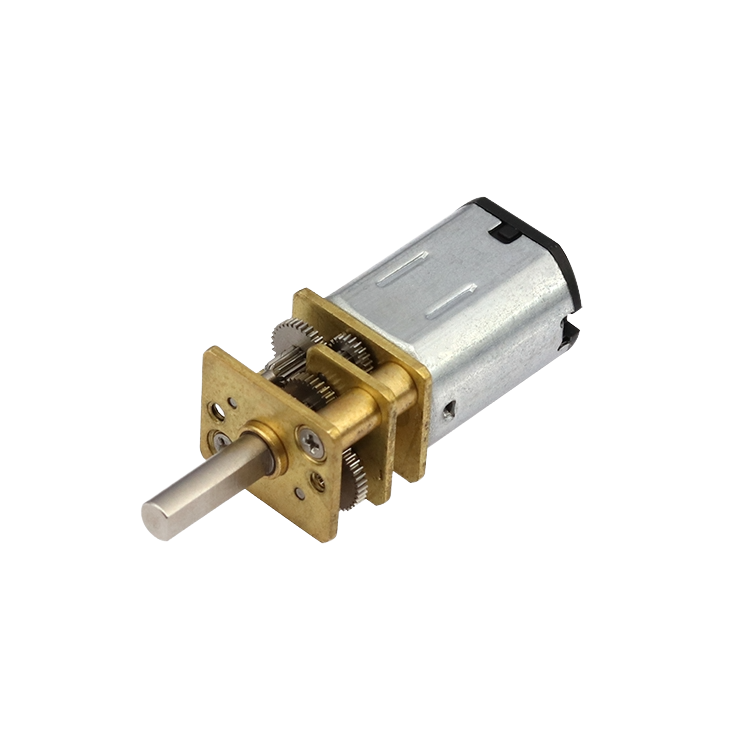

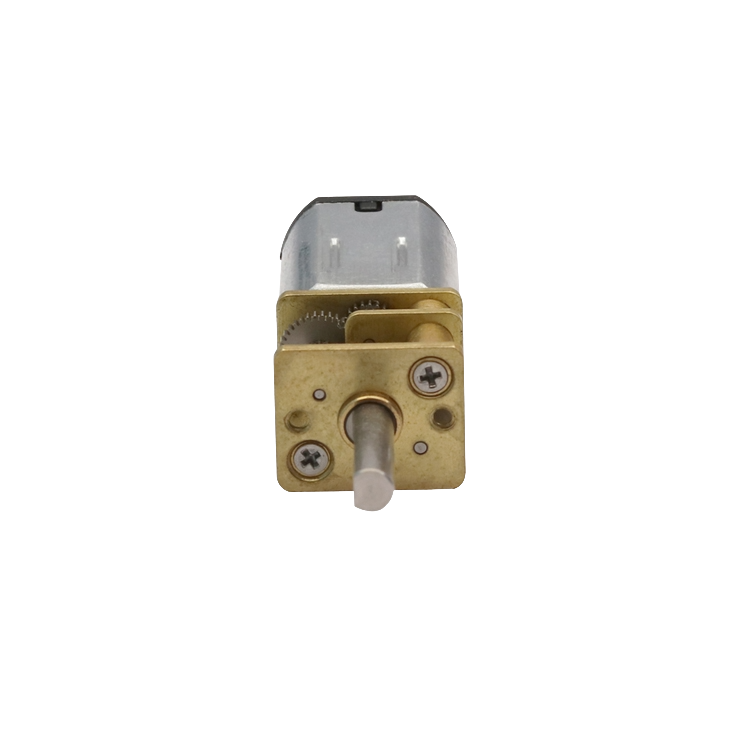

12mm Diameter Micro Brushed Motor With Gearbox

This 12mm diameter N20 micro brushed motor with gearbox offers a balanced size and voltage range, making it suitable for compact devices that require flexible power options and reliable mechanical output.

Get a Quote

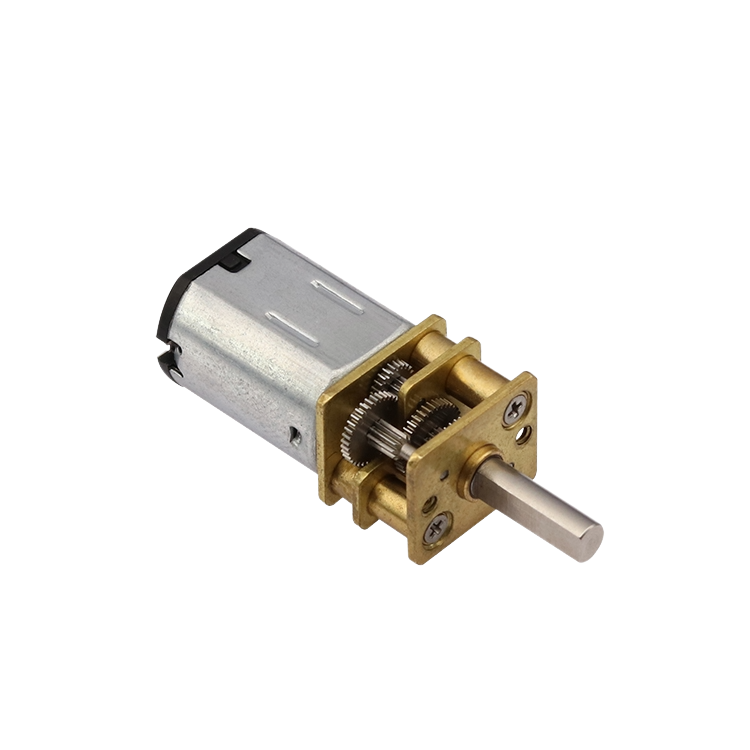

  • 12mm Diameter Micro Brushed Motor With Gearbox Featured Image
Specs

Key Features

Built on the widely used N20 motor platform, this model provides a practical balance between compact size and voltage adaptability for small drive systems.

  • 12mm diameter form factor suitable for compact mechanical layouts
  • Integrated gearbox and motor structure for simplified installation
  • Wide voltage adaptability supporting both low and mid-voltage systems
  • Inline output design compatible with common transmission setups
  • Commonly used in small electromechanical and control-driven products
technical Specs

Motors Specifications

Reduction ratio 10 30 50 100 150 210 250 298 380 1000
Gearbox length mm 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 12.0
No-load speed rpm 1550 530 310 160 110 78 60 55 43 16
Rated speed rpm 1100 400 250 125 83 60 50 42 33 13
Rated torque Kg.cm 0.02 0.05 0.07 0.15 0.22 0.31 0.37 0.45 0.5 1.0
Max. momentary tolerance torque Kg.cm 0.1 0.2 0.4 0.8 1.1 1.5 1.6 1.9 2.5 3.0

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Mature N20 Platform

    The N20 motor platform is widely used across compact drive applications, offering stable structure and predictable integration.

  • Controlled Assembly Process

    Standardized assembly ensures consistent gearbox alignment and dimensional repeatability.

  • Flexible Voltage Compatibility

    The wide voltage range supports use across different power system designs without changing motor size.

  • Designed for Scalable Supply

    This model is suitable for repeat production and long-term project support.

Custom

Beyond the Standard: Performance Customized

  • 01
    Voltage Selection
    Operating voltage can be configured within the supported application range.
  • 02
    Gearbox Configuration
    Inline spur gearbox matched to the N20 motor size.
  • 03
    Gear Material Options
    Material selection can be adjusted based on application conditions.
  • 04
    Output Shaft Variations
    Output shaft length and end form can be customized if required.
  • 05
    Project-Based Adjustments
    Additional requirements can be reviewed based on specific project needs.
  • Voltage Selection
  • Gearbox Configuration
  • Gear Material Options
  • Output Shaft Variations
  • Project-Based Adjustments

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For application matching or customization inquiries, our team can provide further assistance.

What makes the N20 motor suitable for compact devices?
Its 12mm diameter provides a good balance between size and output capability for small mechanical systems.
Is this motor compatible with different voltage systems?
Yes. It supports a broad applied voltage range, allowing flexibility in power system design.
Does this product include the gearbox as standard?
Yes. The motor and gearbox are supplied as a single integrated assembly.
Is this model suitable for batch production?
Yes. It is designed to support consistent structure and stable supply for repeat orders.
Can it be adapted for specific applications?
Basic customization options are available depending on application requirements.
