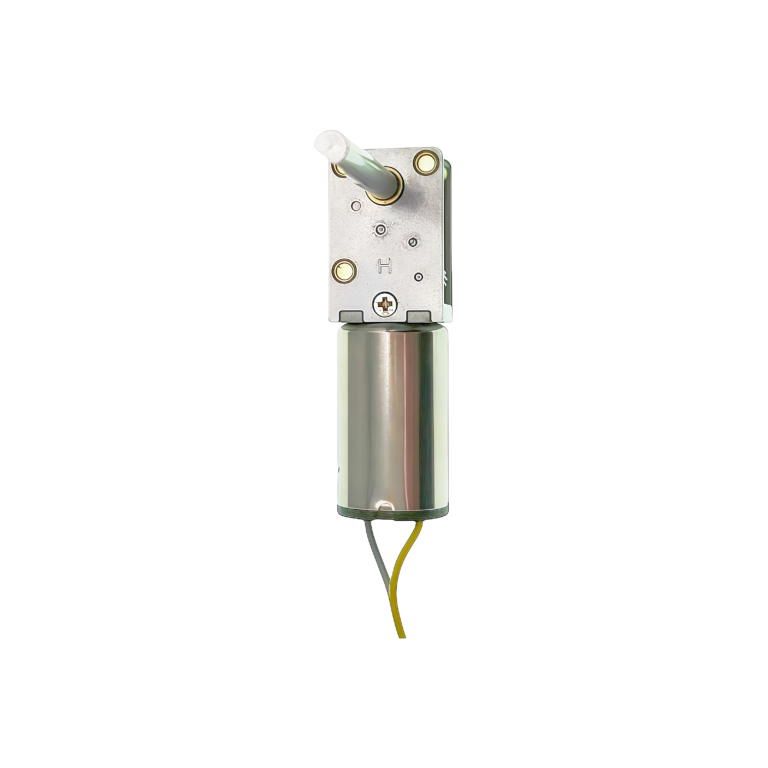

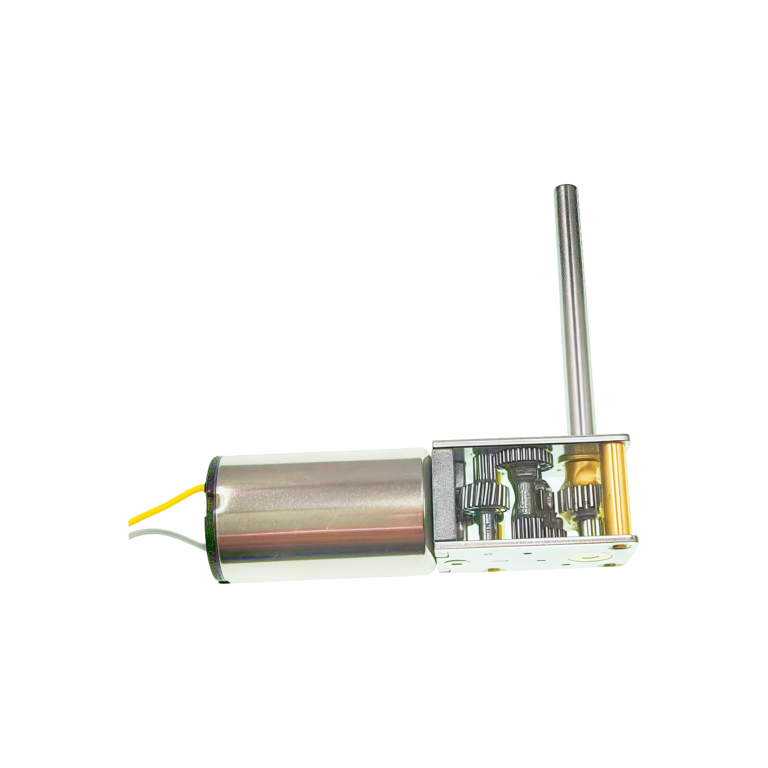

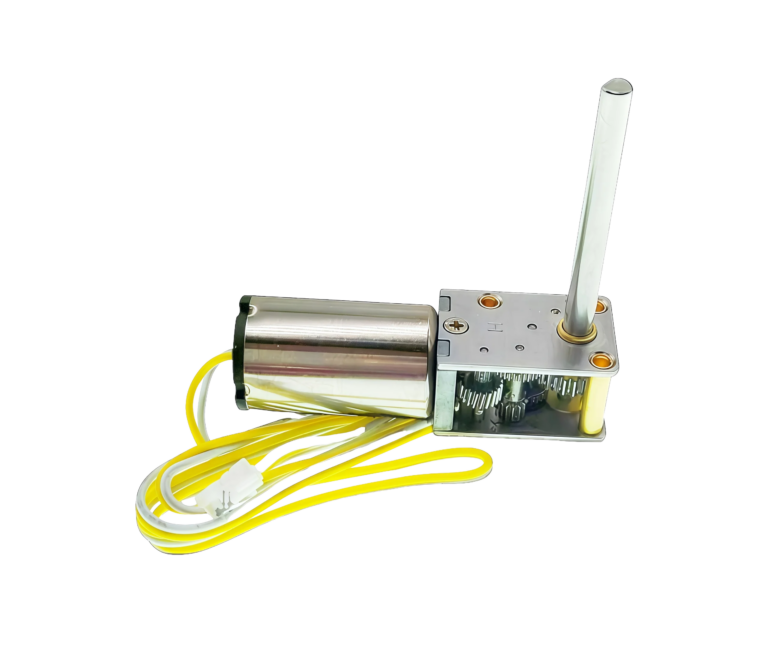

12mm Diameter Brushed Coreless Motor With Worm Gearbox

The 12mm coreless motor with 90-degree shaft gearbox focuses on smooth response and low inertia performance, supporting compact mechanisms that require precise motion control within limited space.

Get a Quote

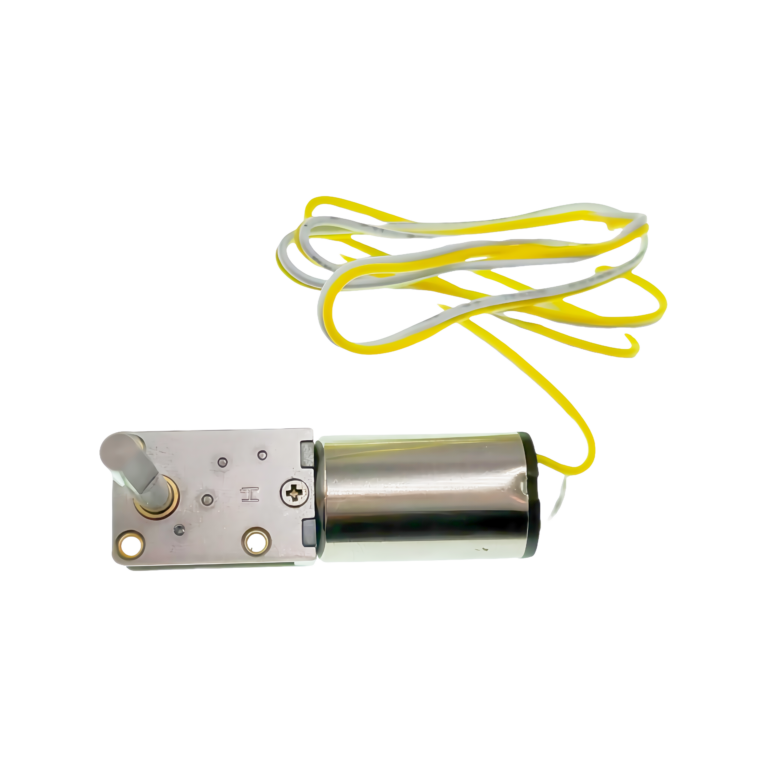

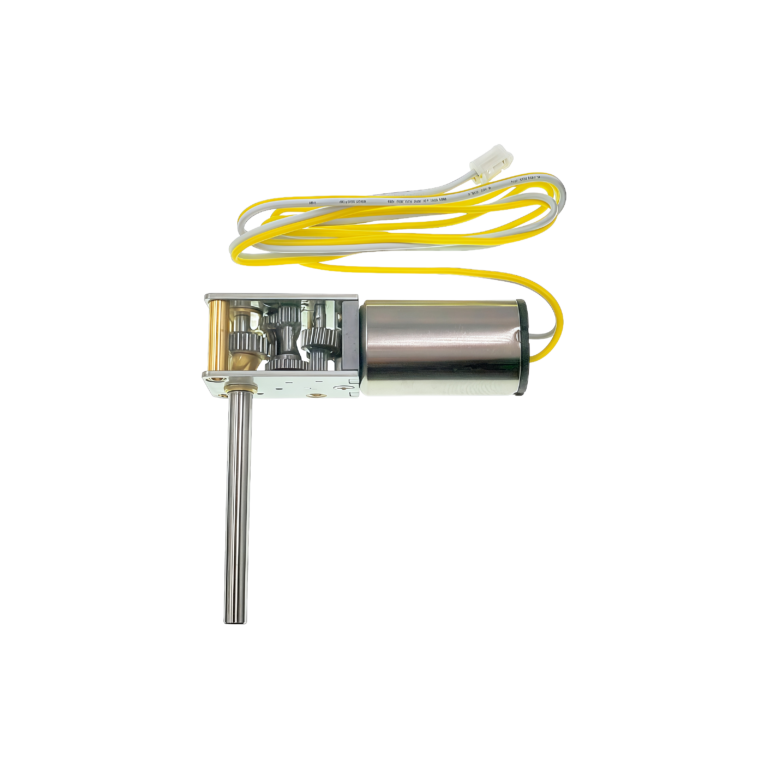

  • 12mm Diameter Brushed Coreless Motor With Worm Gearbox Featured Image
Specs

Key Features

This model combines a coreless motor architecture with a right-angle gearbox, emphasizing responsive behavior and smooth output rather than purely structural or load-driven design.

  • Coreless motor design supports low inertia and quick response
  • 90-degree output configuration enables compact and flexible layouts
  • Compact gearbox size suitable for miniature assemblies
  • Integrated motor and gearbox structure simplifies alignment
  • Designed for low-voltage applications within a 3–12V range

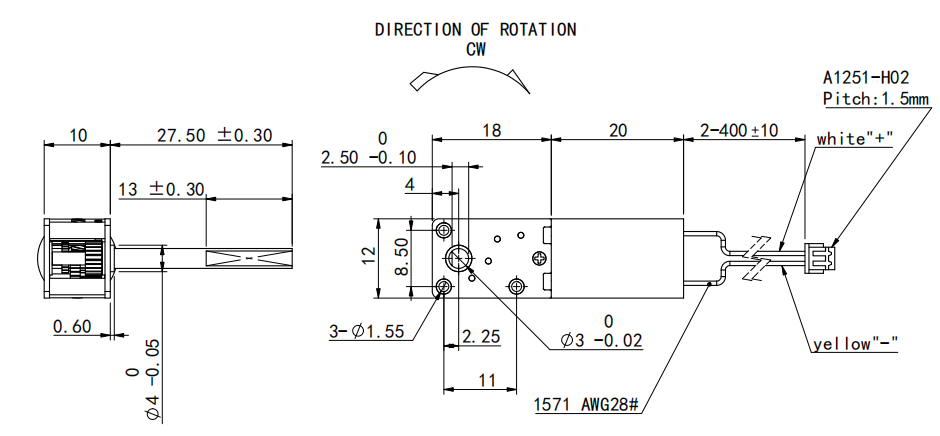

technical Specs

Motors Specifications

Reduction ratio No-Load Rated Load Stall
Rated Voltage (V) Speed (RPM±10%) Current (A) Speed (RPM±10%) Current (A) Torque (Kg.cm) Power (W) Torque (Kg.cm) Current (A)
18 12 1055 21 9000 65 16 0.80 110 340
42 12 452 21 385 65 38 0.80 257 340
63 12 301 21 257 65 57 0.80 385 340
80 12 237 21 202 65 72 0.80 490 340
102 12 186 21 158 65 92 0.80 624 340
105 12 180 21 154 65 95 0.80 642 340
115 12 165 21 140 65 104 0.80 703 340
121 12 157 21 103 65 109 0.80 740 340
127 12 149 21 108 65 114 0.80 777 340
157 12 121 21 103 65 141 0.80 960 340
244 12 77 21 66 65 220 0.80 1493 340
298 12 63 21 54 65 268 0.80 1823 340
302 12 62 21 53 65 272 0.80 1848 340
311 12 61 21 52 65 280 0.80 1903 340
345 12 55 21 46 65 310 0.80 2111 340
604 12 31 21 26 65 543 0.80 3696 340
898 12 21 21 18 65 808 0.80 5459 340
992 12 19 21 16 65 992 0.80 6071 340
1032 12 18 21 15 65 928 0.80 6315 340
1576 12 12 21 10 65 1418 0.80 9645 340

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Low-Inertia Drive Characteristics

    The coreless motor structure is selected for applications that benefit from smoother acceleration and deceleration behavior.

  • Precision-Oriented Integration

    This model supports compact systems where motion response is more critical than mechanical load capacity.

  • Compact Right-Angle Assembly

    The 90-degree gearbox enables efficient routing of motion while maintaining a small mechanical footprint.

  • Suitable for Controlled Motion Systems

    Designed for devices that require predictable and smooth movement in small electromechanical assemblies.

Custom

Beyond the Standard: Performance Customized

  • 01
    Dynamic Response Tuning
    Configuration can be evaluated to match acceleration, deceleration, and control response expectations.
  • 02
    Low-Voltage System Matching
    Motor and gearbox setup can be aligned with specific low-voltage power architectures.
  • 03
    Output Shaft Configuration
    Output shaft dimensions and end style can be adapted to suit precision couplings or driven components.
  • 04
    4. Control-Oriented Integration
    Wiring orientation and connector options can be reviewed to match control system layouts.
  • 05
    Application-Specific Motion Requirements
    Customization can be discussed based on complete motion control objectives.
  • Dynamic Response Tuning
  • Low-Voltage System Matching
  • Output Shaft Configuration
  • Control-Oriented Integration
  • Application-Specific Motion Requirements

Custom Now

Related

Explore Our Motor

View All Products

FAQ

Frequently Asked Questions

For detailed selection guidance or project-specific requirements, please contact our team for further support.

What is the main advantage of a coreless motor in this configuration?
Coreless motors are commonly selected for their smooth response and low inertia characteristics.
What voltage range does this model support?
It is designed to operate within a 3–12V voltage range.
Is the 90-degree gearbox supplied as part of the assembly?
Yes. The motor and gearbox are supplied as an integrated unit.
Is this suitable for precision-oriented applications?
It is intended for compact systems where smooth and responsive motion is required.
Can this model be customized for specific control requirements?
Customization options are available depending on system design and production volume.
