12mm Diameter 20 Micro Brushed Coreless Motor With 90 Degree Shaft Gearbox

This 12mm micro brushed coreless gear motor uses a 90-degree shaft gearbox for right-angle packaging in 3–12V systems, letting you route output sideways while keeping a defined 12V performance point for speed and torque planning.

Get a Quote

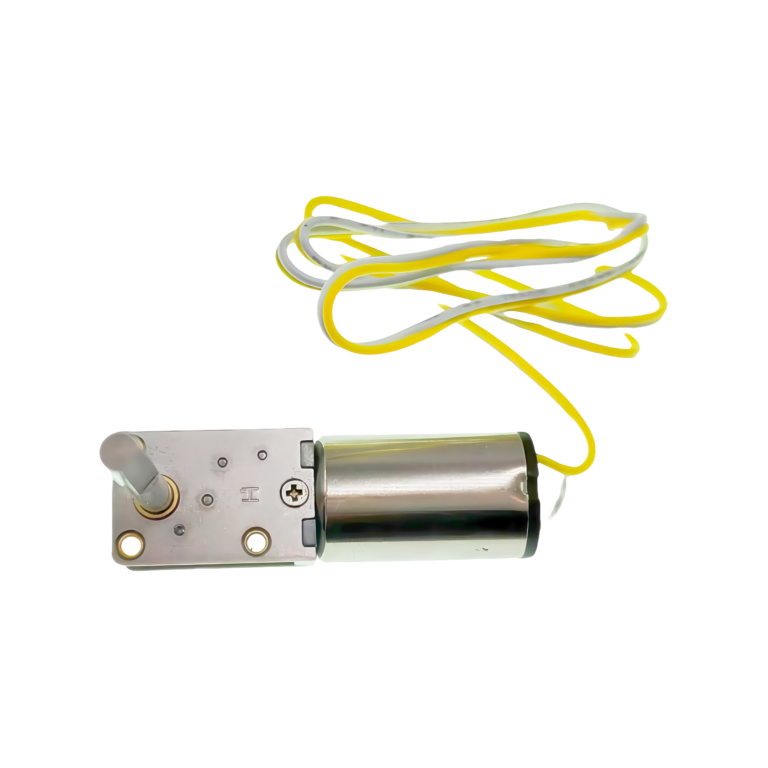

  • 12mm Diameter 20 Micro Brushed Coreless Motor With 90 Degree Shaft Gearbox Featured Image
Specs

Key Features

This model is a right-angle micro brushed coreless gear motor platform defined by its 90° output path and compact gearbox block (18×12×10), making selection straightforward when your layout cannot accept an inline shaft.

  • 3–12V applied range supports compact battery and regulated low-voltage architectures
  • 90-degree shaft gearbox converts the motor axis to a side-output, solving tight clearance and routing constraints
  • 12V rated point provides a defined baseline for speed/current/torque planning in compact mechanisms
  • No-load speed is listed as 90 ±10% rpm, helping you set expected free-run behavior before load is applied
  • Rated-load speed is listed as 68 ±10% rpm with rated-load current 320 mA, anchoring driver sizing under working load
technical Specs

Motors Specifications

Motor Model

Rated voltage

No-load speed

No-load current

Rated-load Speed

Rated-load Current

Stall torque

Stall current

VDC

r/min

mA

r/min

mA

kg.cm

A

DMG1221004

12V

90 ±10%rpm

20

68 ±10%rpm

320

2.0

1200mA

For additional customization or reference configurations, please feel free to contact us.

Why Choose us

SLW Motor Highlights

  • Right-Angle Output Solves Clearance Conflicts

    The 90-degree shaft gearbox routes output sideways, which helps when your assembly cannot accommodate an inline motor length or needs a flat gearhead orientation.

  • Defined Low-Speed Working Point for Micro Drives

    Rated-load speed at 68 ±10% rpm provides a stable anchor for mechanisms that prioritize controllable low-speed motion over high RPM output.

  • Compact Gearbox Block Protects Mechanical Packaging

    The 18×12×10 mm gearbox size helps when the design has tight envelope constraints and must keep the output stage inside a small housing.

  • Load Current Anchors Driver Sizing

    Rated-load current at 320 mA defines the normal working electrical load, which helps separate routine operation from stall or jam events.
