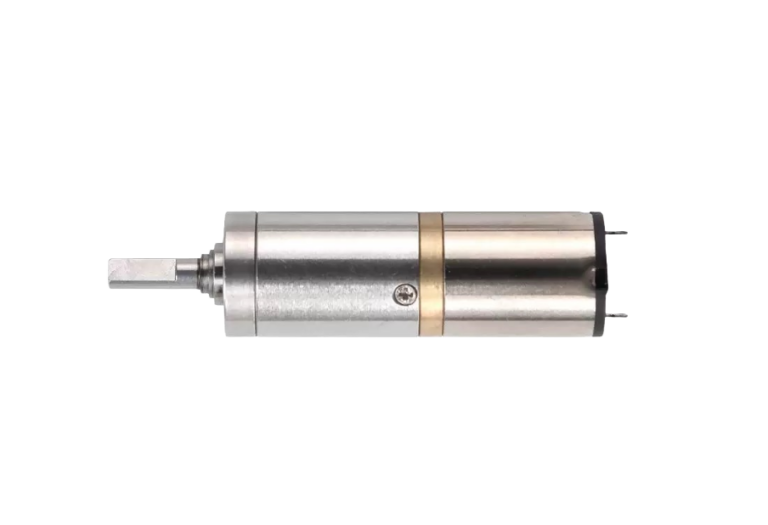

This 12mm brushed coreless motor with a planetary gearbox delivers smooth, low-inertia response for compact drive systems that need stable speed reduction and consistent output in a small package.
This model pairs a brushed coreless motor with a compact planetary gearbox for applications that prioritize smooth response and controlled output within limited space.
| Motor Model | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Stall torque |
| VDC | r/min | mA | r/min | g. cm | mA | g. cm | |
| BLC1221-01 | 12 | 2000 | 20 | 1280 | 3.7 | 120 | 80 |
| BLC1221-02 | 12 | 400 | 20 | 260 | 150 | 120 | 360 |
| BLC1221-03 | 12 | 80 | 20 | 52 | 700 | 120 | 1500 |
| BLC1221-04 | 12 | 16 | 20 | 10 | 3000 | 120 | 7500 |
For additional customization or reference configurations, please feel free to contact us.
The coreless design supports responsive control behavior where small size and smooth output matter.
Planetary structure suits compact reduction needs while keeping the output centered for easier alignment.
Multiple motor configurations help you match target speed bands while staying on the same platform.
A practical size for compact assemblies that still need controlled output and stable fit.
If you share your target speed and load type, we can help shortlist the most suitable motor model quickly.
